INTERIORDECOR.BIZ.ID – Light is fundamental to our perception and interaction with the world, influencing everything from planetary warmth to life’s initiation. For students, especially in class 9, understanding the tools that reveal the unseen world is crucial. The light microscope is one such essential instrument, allowing us to explore the microscopic realm.
A light microscope definition for class 9 is an optical instrument that uses visible light and a system of lenses to magnify small objects, making them visible to the naked eye. These microscopes are ubiquitous in biology labs because they utilize light, a readily available and manageable resource.
How Light Microscopes Work
The core principle behind a light microscope is the refraction of light. Lenses, precisely shaped pieces of glass, bend or refract light rays. By strategically placing these lenses, a light microscope can manipulate light to enlarge the image of a specimen placed beneath it.
This process typically involves two main sets of lenses: the objective lenses and the eyepiece lens (also known as the ocular lens). Each contributes to the overall magnification, allowing us to see details that would otherwise be imperceptible.

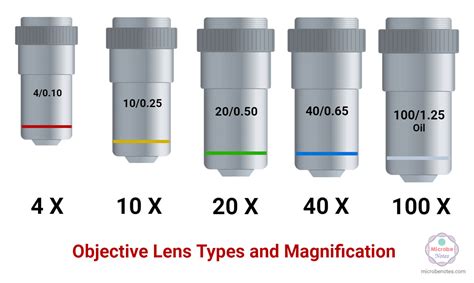

Objective Lenses
The objective lenses are situated closest to the specimen. They gather light that passes through or reflects off the specimen and form an initial magnified image. Microscopes often have multiple objective lenses with different magnification powers, allowing for a range of viewing capabilities.
These lenses are usually mounted on a revolving nosepiece, making it easy for the user to switch between different magnifications during observation. Changing the objective lens is a common step in focusing on finer details of a sample.
Eyepiece Lens
The eyepiece lens, also called the ocular lens, is what you look through to view the specimen. It further magnifies the initial image produced by the objective lens. The combined magnification of the objective and eyepiece lenses determines the total magnification of the microscope.
For example, if an objective lens magnifies an object by 10x and the eyepiece lens magnifies it by another 10x, the total magnification is 100x. This means an object will appear 100 times larger than its actual size.

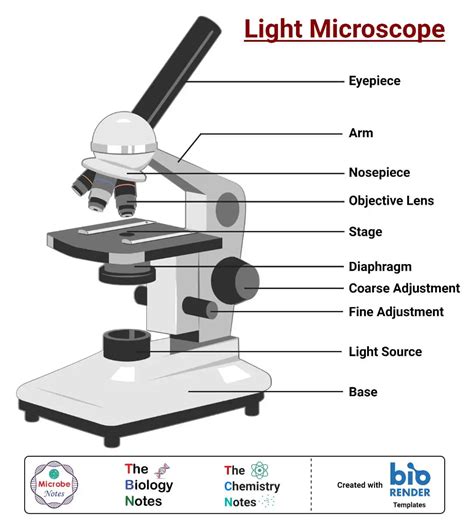

Key Components of a Light Microscope
Beyond the lenses, several other components are vital for the functioning of a light microscope. Understanding these parts helps in operating the microscope correctly and troubleshooting any issues.
- Stage: The flat platform where the slide (containing the specimen) is placed. It often has clips to hold the slide securely.
- Light Source (Illuminator): Usually a lamp or mirror at the base of the microscope that provides the light needed to view the specimen.
- Diaphragm: Located beneath the stage, it controls the amount of light passing through the specimen, influencing contrast and clarity.
- Focus Knobs: Coarse and fine focus knobs are used to adjust the distance between the objective lens and the specimen, bringing the image into sharp focus.
The stage allows for precise positioning of the slide, ensuring the area of interest is under the lens. The illuminator’s intensity can often be adjusted to optimize the viewing experience.
The diaphragm plays a critical role in image quality by regulating the light intensity. Too much light can wash out details, while too little can make the specimen appear dim and indistinct. Precise focusing is achieved through both coarse and fine adjustment knobs.
Types of Light Microscopes
While the basic principle remains the same, there are variations of light microscopes. The most common for educational purposes is the compound light microscope, which uses two sets of lenses (objective and eyepiece).
Other types, like stereo microscopes, use fewer lenses and provide a lower magnification but offer a three-dimensional view of larger objects. Fluorescence microscopes, another advanced type, use fluorescent dyes to highlight specific structures within cells.
Applications in Class 9 Science
In class 9 science, light microscopes are indispensable for observing cells, bacteria, plant tissues, and other microorganisms. They provide direct visual evidence for biological concepts taught in textbooks, making learning more engaging and concrete.
Students learn about cell structures like the nucleus, cytoplasm, and cell walls by directly viewing prepared slides. This hands-on experience fosters a deeper understanding of the fundamental building blocks of life.
Magnification vs. Resolution
It’s important to distinguish between magnification and resolution. Magnification is the ability of the microscope to enlarge an object’s image. Resolution, however, is the ability to distinguish between two closely spaced points as separate entities.
While a light microscope can achieve high magnification, its resolution is limited by the wavelength of visible light. This is why objects viewed under a light microscope cannot be magnified indefinitely and still show clear detail; at some point, the image becomes blurry despite higher magnification.
Conclusion
In summary, a light microscope is a vital educational tool that uses visible light and lenses to magnify tiny specimens. Its ability to reveal the hidden world of microorganisms and cellular structures makes it central to understanding biology, fulfilling the need to explore beyond our natural visual limits.
By understanding its components, function, and limitations, class 9 students can effectively utilize this instrument to enhance their scientific comprehension and curiosity about the microscopic universe.
FAQ Section
What is the main purpose of a light microscope?
The main purpose of a light microscope is to magnify small objects or specimens that are not visible to the naked eye, allowing us to study their detailed structures.
What kind of light do light microscopes use?
Light microscopes use visible light, which is part of the electromagnetic spectrum that humans can see, as their source of illumination to view specimens.
Can you see viruses with a light microscope?
Generally, viruses are too small to be clearly resolved by a standard light microscope due to its limited resolution. Electron microscopes are typically required to view viruses.
What is the difference between magnification and resolution?
Magnification is how much larger an object appears under the microscope, while resolution is the ability to distinguish between two separate points as distinct entities.
What are the two main types of lenses in a compound light microscope?
The two main types of lenses in a compound light microscope are the objective lenses (near the specimen) and the eyepiece lens (where the observer looks).
Frequently Asked Questions (FAQ)
What is the main purpose of a light microscope?
The main purpose of a light microscope is to magnify small objects or specimens that are not visible to the naked eye, allowing us to study their detailed structures.
What kind of light do light microscopes use?
Light microscopes use visible light, which is part of the electromagnetic spectrum that humans can see, as their source of illumination to view specimens.
Can you see viruses with a light microscope?
Generally, viruses are too small to be clearly resolved by a standard light microscope due to its limited resolution. Electron microscopes are typically required to view viruses.
What is the difference between magnification and resolution?
Magnification is how much larger an object appears under the microscope, while resolution is the ability to distinguish between two separate points as distinct entities.
What are the two main types of lenses in a compound light microscope?
The two main types of lenses in a compound light microscope are the objective lenses (near the specimen) and the eyepiece lens (where the observer looks).
Written by: Michael Brown
